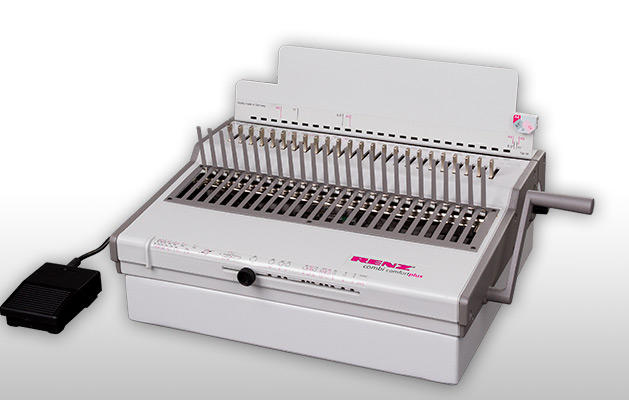

Desktop plastic comb punching and binding machine. For all types of comb book production. Designed to produce documents of all sizes in low and medium volumes quickly and easily. This electric punching and manual binding machine is designed for regular use in a small to medium sized office. It takes the manual labour out of punching.
- Binds up to 480 sheets
- Closure control guarantees easy comb closure
- Gauge to alter margin for a stronger bind
- Special hardened punch pins for long lasting life
- Staggered punching pins for better punching
- QSA (Quick Size Adjustment) for high flexibility of different paper formats: A5 and A4
- Adjustable side lay for perfect punching registration
- Easy to empty sliding waste tray
- Measures the document or comb size
- Heavy duty construction & compact design
- Maximum:
Width
340 mmPunch up to
2.5 mmBind up to
48 mm
- Output:
Max. punched sheets per hour
16,000Max. bound products per hour
250
EAN | 4029126511340 |
N.º de artículo | 27340300 |
Capacidad de perforación de hojas por hora | 16,000 |
Anchura mín. de perforación | 10 mm |
Anchura máx. de perforación | 340 mm |
Longitud mín. sin perforar | 50 mm |
Longitud máx. sin perforar | 500 mm |
Grosor máx. de perforación | 2.5 mm |
Funcionamiento de perforación | Electric |
Matrices de perforado disponibles | Oblong 8 x 3 mm |
Paso | US |
Punzones seleccionables (QSA) | Yes |
Profundidad de margen variable | Yes |
Grosor de encuadernación | 1 - 48 mm |
Ø de espárrago de encuadernación | 6 - 52 mm |
Anchura mín. de encuadernación | 10 mm |
Anchura máx. de encuadernación | 340 mm |
Funcionamiento de encuadernación | Manual |
N.º de libros terminados por hora | 250 |
Dimensiones de la máquina L. × An. × Al. | 360 x 500 x 350 mm |
Peso de la máquina | 23.5 kg |
Dimensiones del embalaje L. × An. × Al. | 620 x 480 x 345 mm |
Peso de la máquina con embalaje | 26 kg |
Requisitos eléctricos | 230/250 V/50 Hz/180 W 115/200 V/60 Hz/180 W |
Technical modifications may be made without notice. 1 mm = 10 sheets of paper, based on 80 gsm. All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator. For best punching results we recommend a paper thickness of 1.5 - 2.0 mm.
