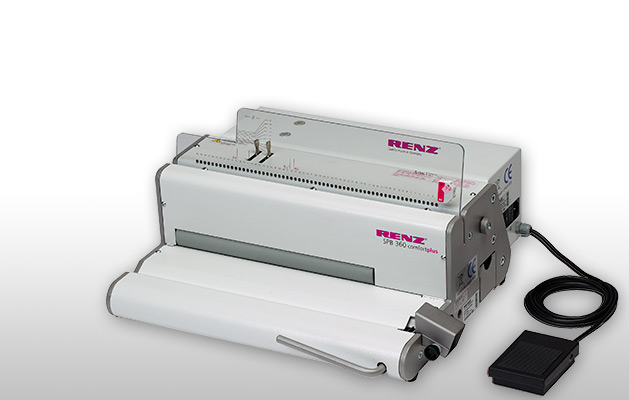

Desktop spiral punching and inserting machine. Designed for low to medium volumes of PVC coil books production. This electric punching and electric inserting machine with manual crimping and cutting. Designed for regular use in a small to medium sized office.
- Binds up to 160 sheets
- QSA (Quick Size Adjustment) for high flexibility of different paper formats: A5 and A4
- Adjustable side lay for perfect punching registration
- Special hardened punch pins for long lasting life
- Staggered punching pins for better punching
- Easy to empty sliding waste tray
- Unique electric roller for quick coil insertion
- Clever crimper and cutter for turning coil ends
- Measures the document or coil size
- Heavy duty construction & compact design
- Maximum:
Width
360 mmPunch up to
2.0mmBind up to
16 mm
- Output:
Max. punched sheets per hour
11,000Max. bound products per hour
100
EAN | 4029126511654 |
N.º de artículo | 270764000 |
Capacidad de perforación de hojas por hora | 11,000 |
Anchura mín. de perforación | 10 mm |
Anchura máx. de perforación | 360 mm |
Longitud mín. sin perforar | 50 mm |
Longitud máx. sin perforar | 500 mm |
Grosor máx. de perforación | 2.0 mm |
Funcionamiento de perforación | Electric |
Matrices de perforado disponibles | Oval 5.0 x 4.0 mm |
Paso | 0.2475” |
Punzones seleccionables (QSA) | Yes |
Profundidad de margen variable | No |
Grosor de encuadernación | 1 - 16 mm |
Ø de espárrago de encuadernación | 6 - 20 mm |
Anchura mín. de encuadernación | 10 mm |
Anchura máx. de encuadernación | 360 mm |
Funcionamiento de encuadernación | Electric insert, manual crimp and cut |
N.º de libros terminados por hora | 100 |
Dimensiones de la máquina L. × An. × Al. | 440 x 490 x 250 mm |
Peso de la máquina | 32 kg |
Dimensiones del embalaje L. × An. × Al. | 620 x 480 x 345 mm |
Peso de la máquina con embalaje | 36 kg |
Requisitos eléctricos | 230/250 V / 50 Hz / 180W 115/200 V / 60 Hz / 180W |
Technical modifications may be made without notice. 1 mm = 10 sheets of paper, based on 80 gsm.
All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator. For best punching results we recommend a paper thickness of 1.5 - 2.0 mm.
