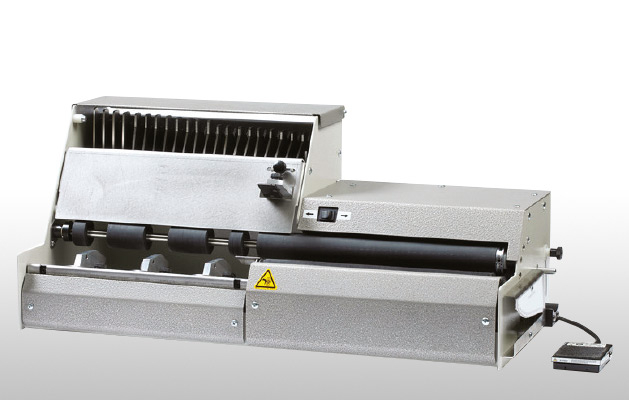

One machine with two modes of coil insertion that can handle coil diameters from 6 to 50 mm.

  • Comes complete with a set of 21 Spine Formers
  • Type 1 – for .2475” / 3:1 Pitch Type 2 – for 4:1 / 3:1 / 2.5:1 Pitch
  • Can bind books with coil diameters from 6 mm up to 50 mm
  • Vertical book placement can accommodate tabs or wider covers.
  • Offers two distinct modes of coil insertion based on book thickness.
  • Partners nicely with the CB - Cut & Bend
  • Foot Pedal Operated
Maximum:
Width

Width
305 mm (with Spine Formers) / 990 mm (with Rollers)

Bind up to

Bind up to
41 mm

Output:
Max. bound products per hour

Max. bound products per hour
350

All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator.

Book shaping spine formers enable the operator to insert diameters up to 50 mm.

Dual spinning roller insertion for coil diameters up to 15 mm.

Paso Type 1 – for .2475” / 3:1 Pitch
Type 2 – for 4:1 / 3:1 / 2.5:1 Pitch
Grosor de encuadernación 3.5 - 41.0 mm
Ø de espárrago de encuadernación 6 - 50 mm
Anchura mín. de encuadernación 152.5 mm (with Spine Formers)
25 mm (with Rollers)
Anchura máx. de encuadernación 305 mm (with Spine Formers)
990 mm (with Rollers)
Funcionamiento de encuadernación Electric insert
N.º de libros terminados por hora 350
Tiempo necesario para cambiar diámetro 5 min
Cambio de formato sin diámetro 2 min
Peso de la máquina 24 kg
Dimensiones del embalaje L. × An. × Al. 710 x 320 x 305 mm
Requisitos eléctricos 220 V Single Phase
110 V Single Phase

Technical modifications may be made without notice. 1 mm = 10 sheets of paper, based on 80 gsm.

All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator.
