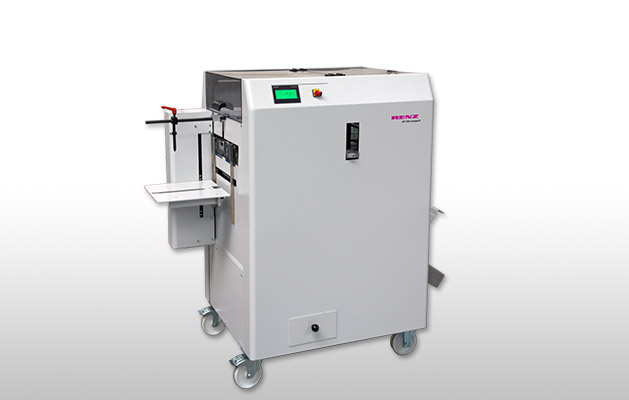

Heavy-duty, floor standing, automatic punch machine, for small to medium runs.

  • Automatic punching process
  • Two finger paper pick up system which can handle a range of mixed stock
  • Fast die and format changes
  • Touch screen assisted set-up process
  • Wheels allow the machine to be moved
  • QSA (Quick Size Adjustment) for high flexibility of different paper formats(1)
  • High prestack capacity up to 4.000 sheets
  • Low noise level (65db A)
Maximum:
Width

Width
300 mm

Punch up to <sup>(1)</sup>

Punch up to (1)
1,2 mm

Output:
Mechanical cycles per hour

Mechanical cycles per hour
3,600

Max. punched sheets per hour

Max. punched sheets per hour
45,000

All performance outputs are based on 70/80 gsm paper and may vary depending on the product type, the working environment and the operator.

(1) Dependent on the die type.

Strong and reliable German engineered punching dies with a working width of 300 mm. Available in a wide range of different punch patterns.

QSA (Quick Size Adjustment) technology allows the quick cancellation of punching pins without the need to remove the die.(2)

Touch screen assisted set-up process

Two finger paper pick-up system allows mixed paper stocks to be handled more easily.

Large waste tray which can be easily removed from the front.

Deep pile feeder with high prestack capacity up to 4.000 sheets.

Deep pile paper output with high capacity up to 4.000 sheets.

Ciclos mecánicos por hora 3,600
Anchura mín. de perforación 148 mm
Anchura máx. de perforación 300 mm
Longitud mín. sin perforar 148 mm
Longitud máx. sin perforar 300 mm
Grosor máx. de perforación 1.2 mm (1)
Funcionamiento de perforación Automatic
Matrices de perforado disponibles 3:1, 2:1 ring wire, coil, plastic comb
Punzones seleccionables (QSA) Yes
Tiempo de cambio de matriz 1.5 min
Dimensiones de la máquina L. × An. × Al. 1,420 x 812 x 1,326 mm
Peso de la máquina 380 kg (2)
Requisitos eléctricos 230V~50Hz / 0.9kW
115V~60Hz / 0.9kW

Technical modifications may be made without notice. 1 mm = 10 sheets of paper, based on 80 gsm.All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator.

(1) Dependent on the die type. (2) Dependent on the machine configuration, weight excluding the die.
