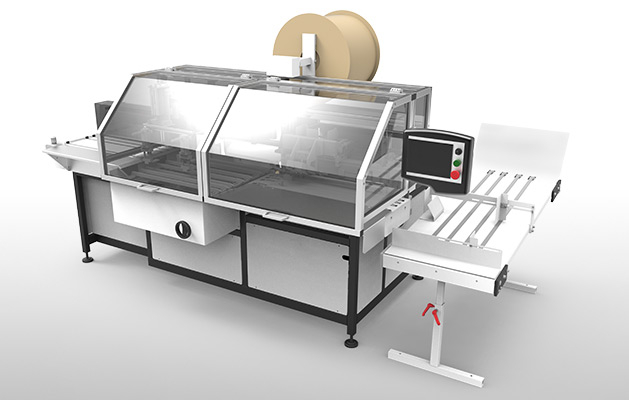

Automatic punching and binding machine for books and calendars.

  • Up to 75% increase in productivity compared to semi-automatic machines
  • Touch screen for easy format changes
  • QSA (Quick Size Adjustment) technology to reduce set-up times
  • Highest flexibility – easy relocation
  • Upgradable with various modules – adaptation to customer demands
  • Connection to different packing machines
Maximum:
Width

Width
500 mm

Punch up to

Punch up to
4.5 mm

Bind up to

Bind up to
20 mm

Output:
Max. bound products per hour

Max. bound products per hour
1,200

All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator. Dependent on the machine type and the configuration.

Menu-driven touch-screen control panel

Combined transport and feeding belts

Split two-part dies for punching books and calendars with QSA-technology (Quick Size Adjustment) reducing set-up times.

positively locking closing tool for perfect binding results

Collection station for products with multiple layers

Transport pins for reliable paper transport

Transfer station with transport pins

Transport pins binding station

Station for forming and feeding calendar hangers

Shingle belt

Spool de-winding with integrated paper separation re-winding

Ciclos mecánicos por hora 1,200
Anchura máx. de perforación
Grosor máx. de perforación 4.5 mm
Funcionamiento de perforación Automatic
Paso 3:1, 2:1 ring wire and calendar
Punzones seleccionables (QSA) Yes
Grosor de encuadernación 20 mm
Anchura mín. de encuadernación 125 mm
Anchura máx. de encuadernación 500 mm
Borde mín. sin encuadernar 145 mm (automatic operation)
100 mm (semi-automatic operation)
Borde máx. sin encuadernar 500 mm
Funcionamiento de encuadernación Automatic
Tiempo necesario para cambiar diámetro approx. 15 min
Cambio de formato sin diámetro approx. 5 min
Colgadores para calendarios Optional
Dimensiones de la máquina L. × An. × Al. 3200 x 2000 x 1500 mm
3200 x 2000 x 2000 mm (with open cover)
Peso de la máquina 590 kg
Aire comprimido 6 bar / 350 - 400 l/min
Requisitos eléctricos 3~/N/PE 400/230V 50Hz / 6.5kW

Technical modifications may be made without notice. 1 mm = 10 sheets of paper, based on 80 gsm. All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator. Dependent on the machine type and the configuration. (1)Dependent on the machine type and the configuration. (2)Weight without dies and closing bars.
