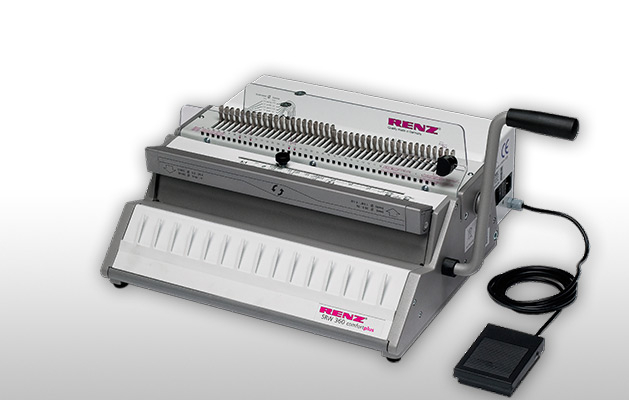

3:1 pitch electric punching and manual binding machine designed for regular use in a small to medium sized office. It takes the manual labour out of punching.

  • Binds up to 135 sheets
  • Closure control guarantees easy ring wire closure for perfect presentations every time
  • Gauge to alter margin for a stronger bind
  • Special hardened punch pins for long lasting life
  • Staggered punching pins for better punching
  • QSA (Quick Size Adjustment) for high flexibility of different paper formats: A5, A4 and A3
  • Adjustable side lay for perfect punching registration
  • Easy to empty sliding waste tray
  • Measures the document or ring wire size
  • Parallel adjustment guarantees a perfect bind every time
  • Heavy duty construction & compact design
Maximum:
Width

Width
360 mm

Punching thickness

Punching thickness
2.2 mm

Binding thickness

Binding thickness
13.5 mm

Output:
Max. no. of punched sheets per hour

Max. no. of punched sheets per hour
16,000

Max. no. of bound products per hour

Max. no. of bound products per hour
250

All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator. For best punching results we recommend a paper thickness of 1.5 - 2.0 mm.

Vertical punching makes it easy to punch accurately every time.

QSA (Quick Size Adjustment) technology means that punching pins can be cancelled and paper formats can be changed quickly and easily.

Depth gauge feature allows the operator to adjust the punched hole margin from 2 mm to 4,5 mm. This adds strength to the bound edge.

Binds up to 135 sheets. The closure control guarantees quick and exact wire closing.

EAN 4029126511357
N.º de artículo 27310300
Capacidad de perforación de hojas por hora 16,000
Anchura mín. de perforación 10 mm
Anchura máx. de perforación 360 mm
Longitud mín. sin perforar 50 mm
Longitud máx. sin perforar 500 mm
Grosor máx. de perforación 2.2 mm
Funcionamiento de perforación Electric
Matrices de perforado disponibles Square 4 x 4 mm
Paso 3:1
Punzones seleccionables (QSA) Yes
Profundidad de margen variable Yes
Grosor de encuadernación 1 - 13.5 mm
Ø de espárrago de encuadernación 5.5 - 16 mm
3/16" - 5/8"
Anchura mín. de encuadernación 10 mm
Anchura máx. de encuadernación 360 mm
Funcionamiento de encuadernación Manual
N.º de libros terminados por hora 250
N.º de calendarios terminados por hora 180
Dimensiones de la máquina L. × An. × Al. 430 x 560 x 180 mm
Peso de la máquina 26 kg
Dimensiones del embalaje L. × An. × Al. 620 x 480 x 345 mm
Peso de la máquina con embalaje 28.5 kg
Requisitos eléctricos 230/250V / 50Hz / 180W
115/200V / 60Hz / 180W

Technical modifications may be made without notice. 1 mm = 10 sheets of paper, based on 80 gsm.

All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator. For best punching results we recommend a paper thickness of 1.5 - 2.0 mm.
