1875

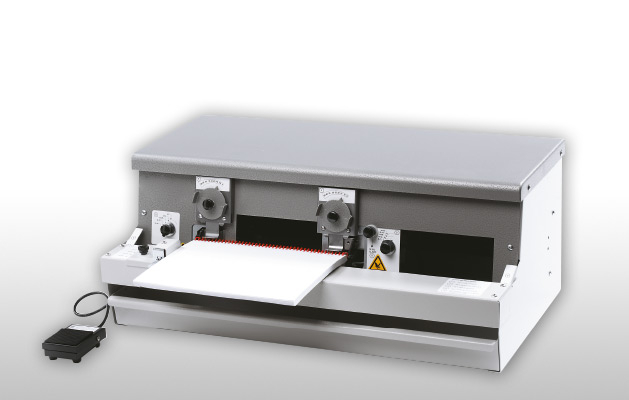

Dual Sided cut and bending unit for the full range of plastic coil diameters from 6 mm up to 50 mm - with the same bending heads!
- No tools required for size changeovers.
- Accommodates coil diameters from 6 mm to 50 mm without the need to change bending heads.
- Min/Max binding edge 140 mm - 430 mm
- Easy to follow decals guide the operator through setup.
- Removable off-cut tray makes accumulation and disposal of off-cuts neat and tidy.
- Available with electric or pneumatic actuation.
- Foot pedal operated.
- Simple dial adjustments enable you to setup, cut and bend coil diameters from 6 mm to 50 mm with the same bending heads!
- Longer bend achieved as the coil diameter increases reducing the risk of coil unwinding from the larger punch holes.
- Large top surface doubles as useable workspace.
- Easily integrated with most coil insertion equipment.
- Maximum:
Width
430 mm
Cut & bend up to
Ø 6 - 50 mm
- Output:
Max. cut & bend products per hour
350
| Paso | all common |
| Ø de espárrago de encuadernación | 6 - 50 mm |
| Anchura mín. de encuadernación | 140 mm |
| Anchura máx. de encuadernación | 430 mm |
| Funcionamiento de encuadernación | Electric or pneumatic |
| N.º de libros terminados por hora | 350 |
| Tiempo necesario para cambiar diámetro | 1 min. |
| Cambio de formato sin diámetro | 1 min. |
| Anchura de trabajo | 430 mm |
| Dimensiones de la máquina L. × An. × Al. | 710 x 410 x 305 mm |
| Peso de la máquina | 18 kg |
| Aire comprimido | Pneumatic version - Compressed air requirements: 80 psi @ 1 cfm |
| Requisitos eléctricos | 220 V Single Phase (electric version) 110 V Single Phase (electric version) |
Technical modifications may be made without notice. 1 mm = 10 sheets of paper, based on 80 gsm.
All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator.
